1. What is a Direct-Fired Gas Air Heater?
A direct-fired gas air heater is a device that generates hot air by burning natural gas or liquefied gas and directly transfers the heated air to the desired space or process. This type of heater is widely used in industrial, commercial, and other environments that require a stable heat source, such as HVAC systems, industrial drying, and product heating.
2. Main Components of a Direct-Fired Gas Air Heater
A direct-fired gas air heater typically includes the following key components:
- Gas Burner: Used to burn natural gas or liquefied gas, generating heat.
- Heat Chamber: Where the hot air is directly heated by the flame. Unlike traditional heaters that use steam or water as heat exchange mediums, direct-fired heaters use the flame to heat the air directly.
- Fan: Draws in air and pushes the heated air out. The fan ensures airflow and helps distribute the hot air effectively.
- Control System: Regulates the burner temperature, airflow, and other operating parameters to ensure efficient and safe operation.

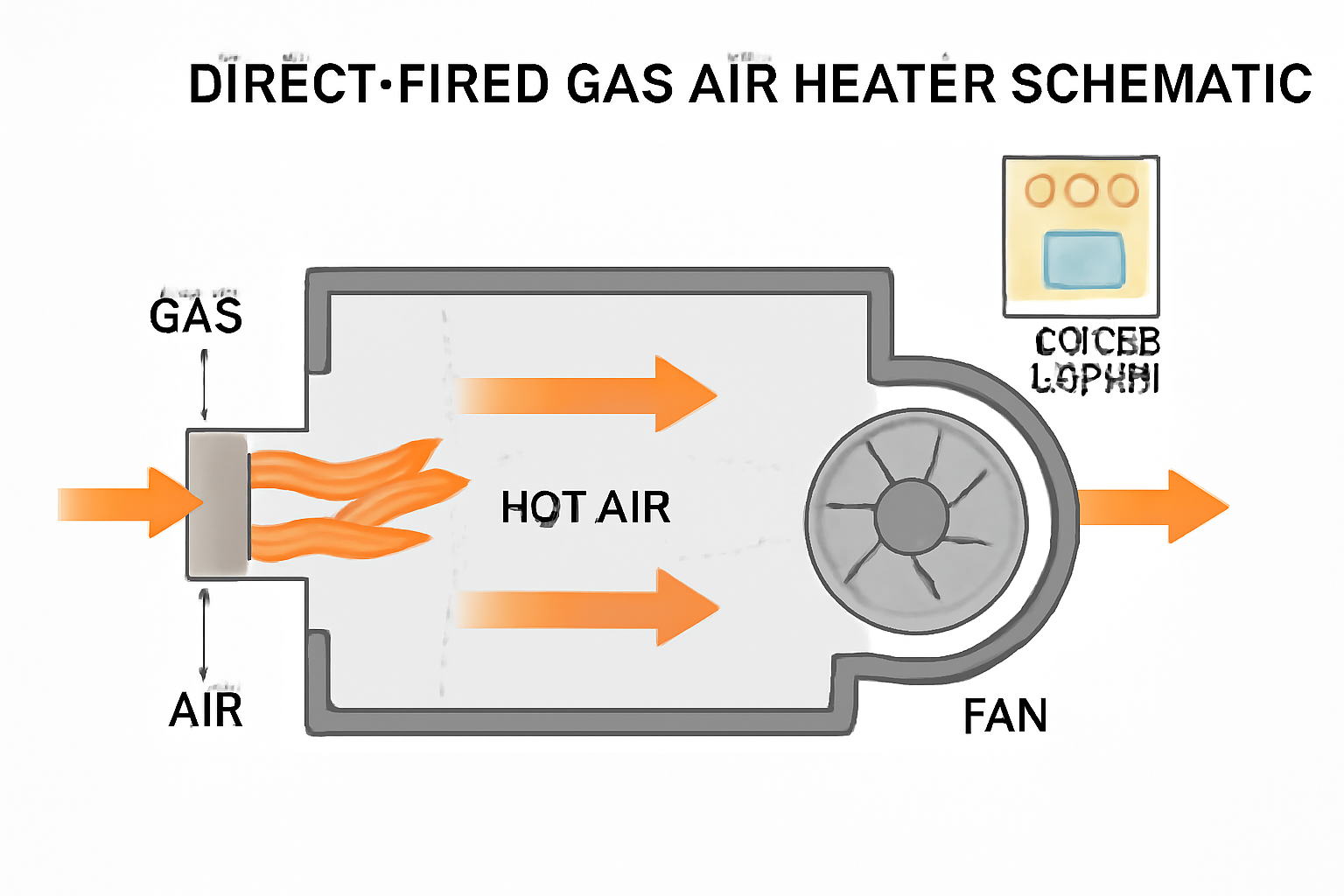

3. Working Principle
The operation of a direct-fired gas air heater can be summarized in the following steps:
- Gas enters the burner: Natural gas or liquefied gas is delivered to the burner, where it mixes with air and is ignited to produce a flame.
- Heat is transferred to the air: The flame releases heat, which is transferred directly to the air in the heat chamber. Without an intermediary (such as steam or water), the heat is directly transferred to the air, allowing it to heat up quickly.
- Airflow: The fan draws in cold air and passes it through the heated chamber. The now hot air is then pushed out and directed to the intended space or process.
- Temperature control: The control system automatically adjusts the burner and fan to maintain the air temperature within the required range.
4. Advantages
- High Efficiency: The direct conversion of gas heat into hot air minimizes energy loss, resulting in high heating efficiency.
- Ease of Operation: The control system is automated, adjusting heating parameters as needed for ease of operation.
- Environmental and Energy Saving: Modern gas air heaters use efficient combustion technologies that minimize harmful emissions while maintaining high thermal efficiency.
- Rapid Response: Direct heating allows for quick adjustments to temperature, making it suitable for environments requiring rapid temperature changes.
5. Common Applications
Direct-fired gas air heaters are commonly used in the following areas:
- Industrial Drying: Such as drying of food, wood, textiles, and other materials.
- Heating Systems: Used to heat spaces like greenhouses, workshops, and warehouses.
- Process Heating: Used in industries that require stable heat sources, such as metalworking, chemical reactions, and more.
